Solid-state transformers

Modular SST built from isolated DC/DC stages (DAB or CLLC) and three-level T-type single-phase inverters, paralleled on the DC side and series-connected on the AC side, with distributed control.

modularT-typeDAB / CLLCdistributed controlSimscape
Solid-state transformers

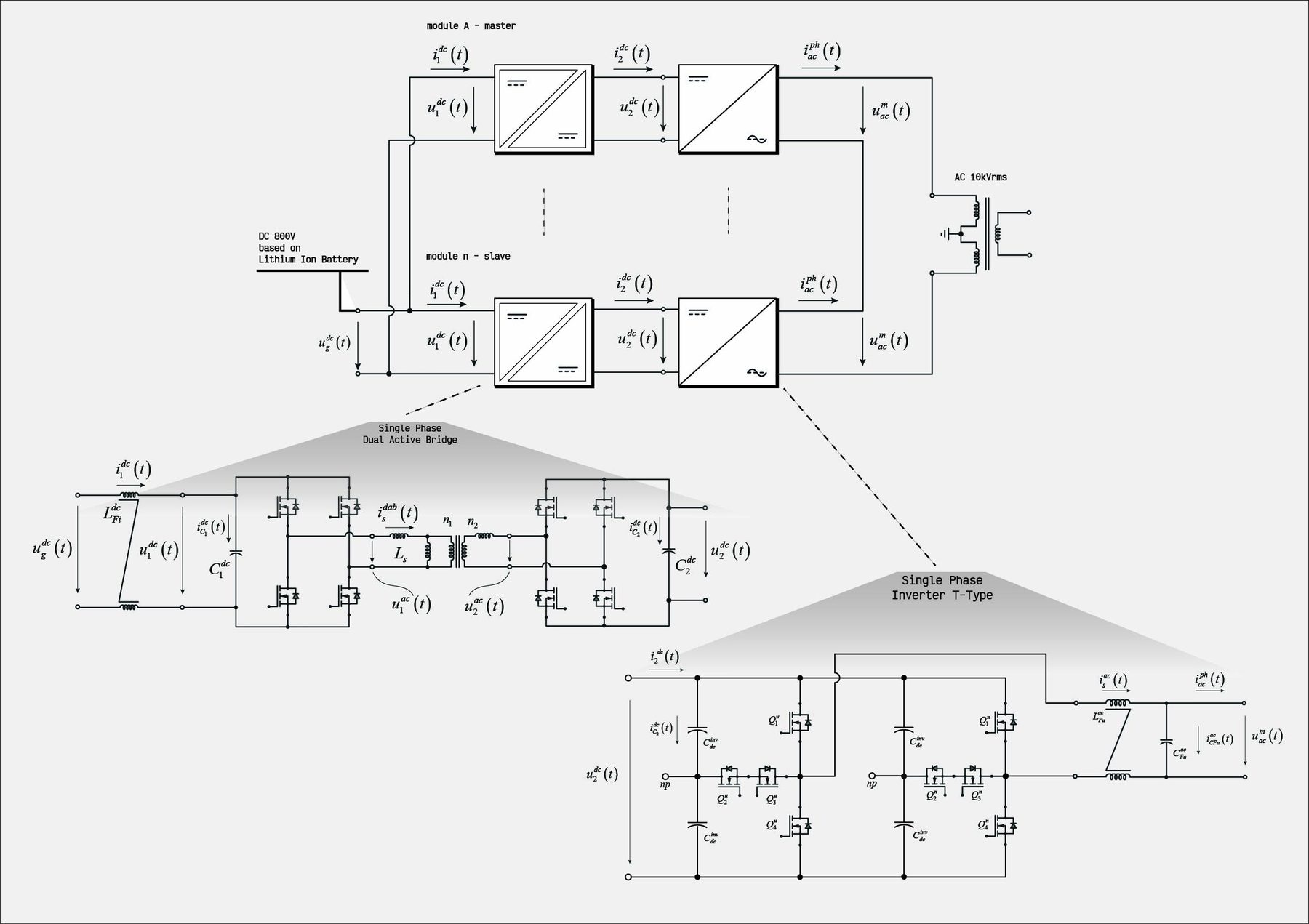

SST module: DC source, isolated DAB stage and three-level T-type single-phase inverter; modules are paralleled on the DC side and series-connected on the AC side.

What it is

A solid-state transformer is built here from modules: each module is a galvanically isolated DC/DC converter followed by a single-phase inverter. The modules share the low-voltage DC side in parallel and stack their inverter outputs in series on the AC side, so the AC voltage is divided among them and the total power is the sum of the module ratings.

The study compares the isolated stage (single-phase DAB versus resonant CLLC) feeding a three-level T-type single-phase inverter, and includes first-cut sizing scripts for the medium-frequency transformers. Simulation results are discussed in the technical note listed under Resources.

Control architecture

The DAB regulates its output DC voltage and behaves as a current source; the inverters share the AC voltage: the master module is current-controlled and the slave modules are voltage-controlled, with references exchanged over a distributed (Ethernet-based) control layer.

Every converter runs on its own local time base in the model. The modulators generate the control triggers, and the local clocks can be detuned to study what time sliding between modules does to the waveforms.

Figures

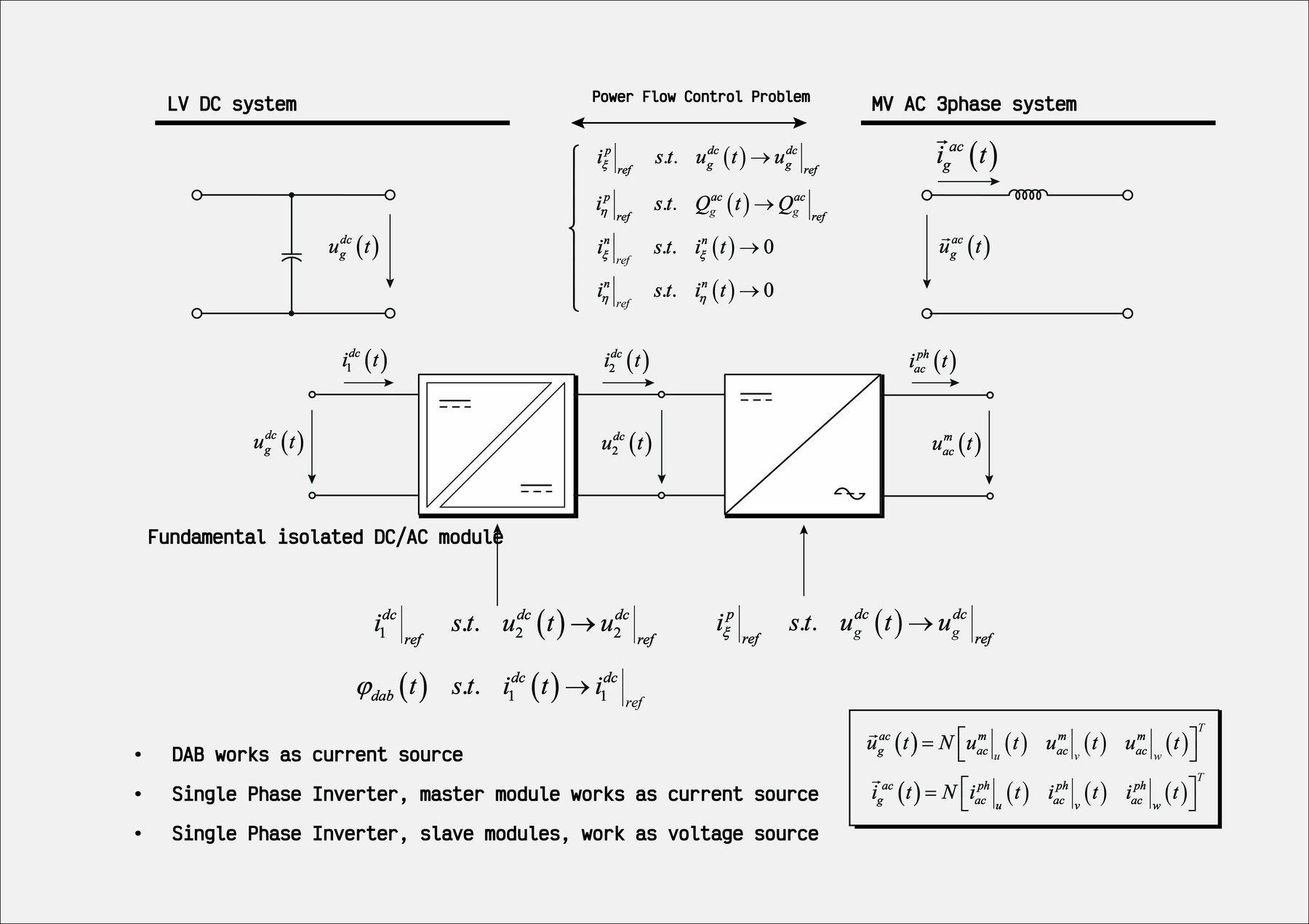

The power-flow control problem between the LV DC system and the MV AC system, and how it is split between the DAB and the inverter of each module.

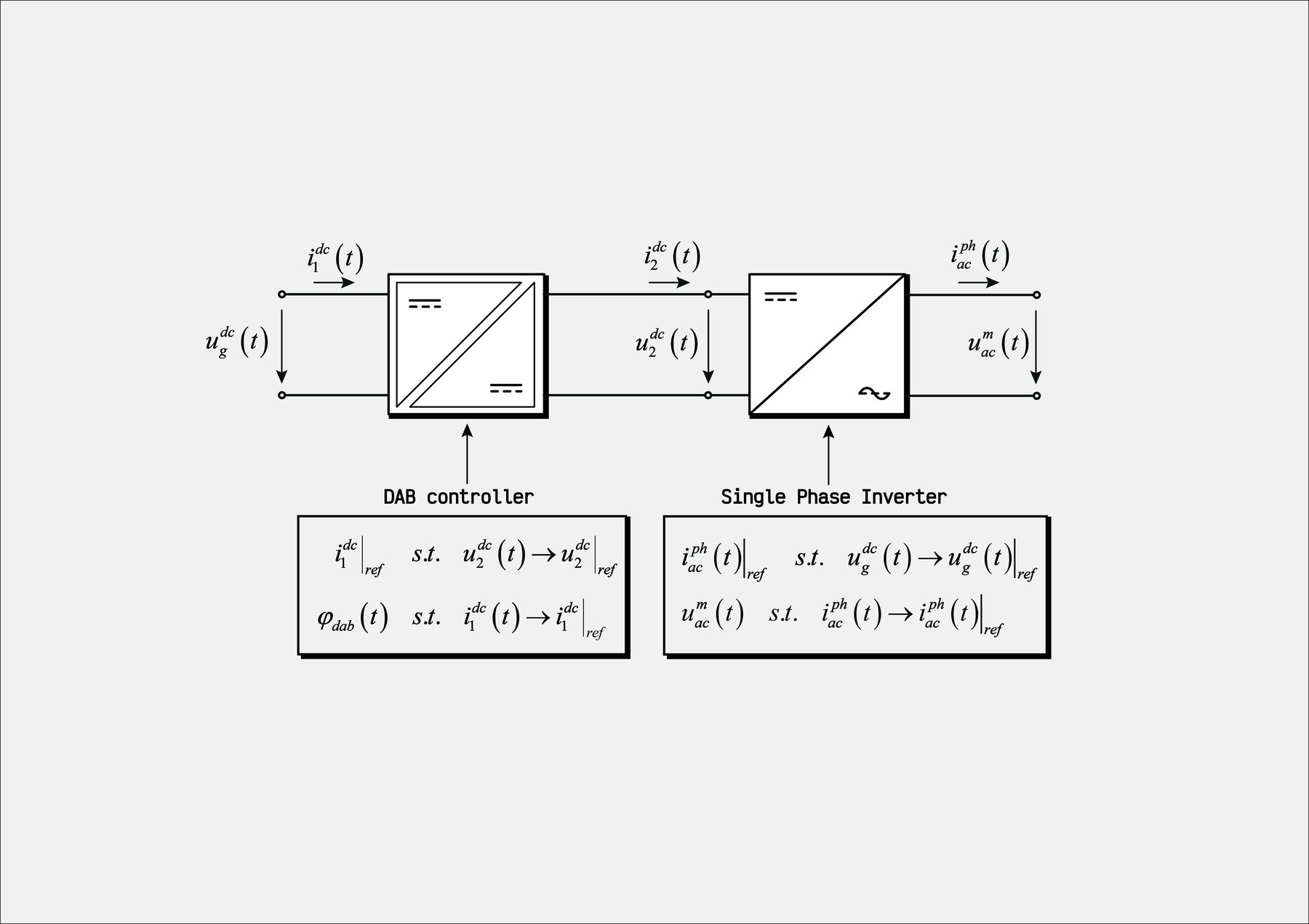

Set-points of the DAB controller and of the single-phase inverter in one module.

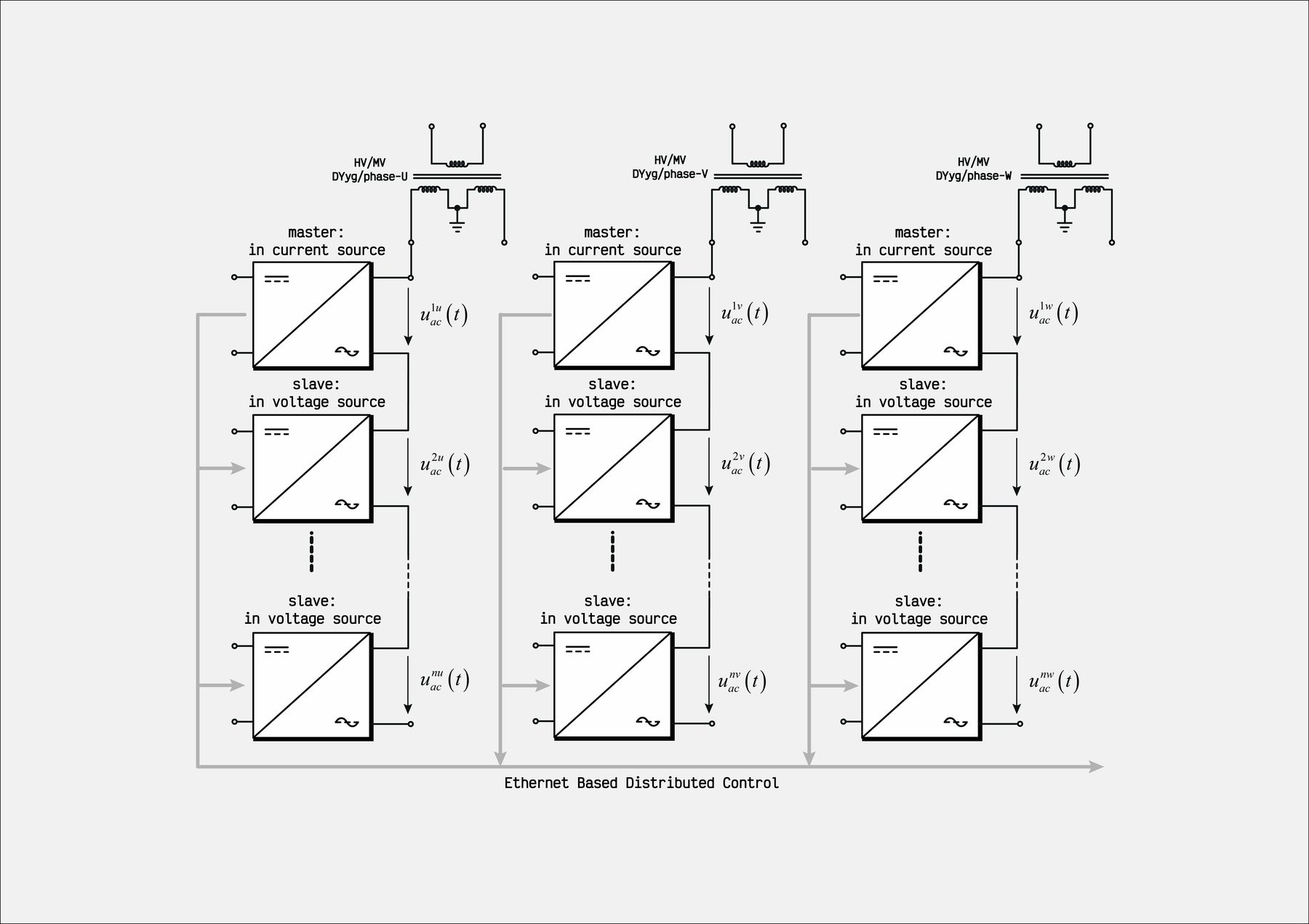

Master/slave arrangement: the master module works as a current source, the slave modules as voltage sources, coordinated through an Ethernet-based distributed control.
